Where to Click on Ruler and Target-Plate (ruler/target crop points).

FocusTune V4

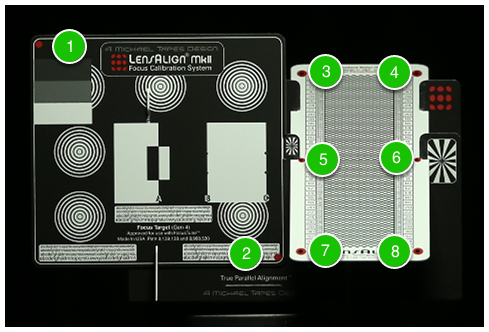

Before a FocusTune process can be run, you must indicate the regions of interest on the target and the ruler. This is done by Shift+clicking on the appropriate red dots on both on the target (2 of 8 clicks) and on the ruler (6 of 8 clicks). The order and placement of the Shift+clicks is critical to the proper operation of FT. This shows the proper sequence and location of the 8 clicks when LA is used as the target.

(shown with Generation 4 focus target-plate and ruler)

FocusTune V4

FocusTune V3

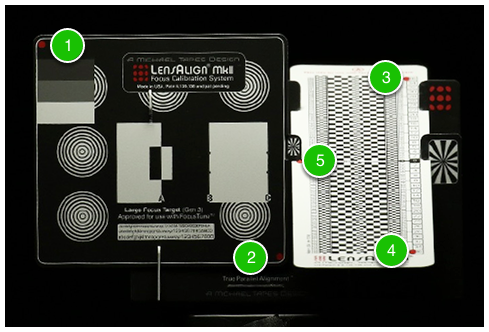

Before a FocusTune process can be run, you must indicate the regions of interest on the target and the ruler. This is done by clicking on the appropriate red dots both on the target (2 of 5 clicks) and on the ruler (3 of 5 clicks). The order and placement of the clicks is critical to the proper operation of FT. This shows the proper sequence and location of the 5 clicks when LA is used as the target.

(shown with Generation 3 focus target and rev1310A ruler)

FocusTune V3
